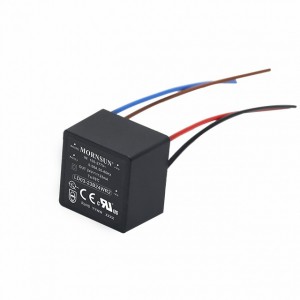

[金升陽] LD小體積型(3-90W)

LDE系列是板載式雙列直插封裝AC/DC模塊電源，功率范圍為3到90W，拓展封裝種類多樣。

——廣泛應用于工業、電力、儀表、通訊及智能樓宇等多個領域。

該系列產品特點：

1、全球輸入電壓范圍，電壓范圍可達85-305VAC

2、滿足 IEC62368、UL62368、EN62368 認證標準

系列標題功率
(W) 輸入電壓
(VAC) 輸入電壓
(VDC) 輸出電壓
(VDC) 輸出電流(A) 隔離電壓認證/標準 技術手冊

LD03-20BxxWG 4000VAC

LD03-20B24WG 3 85~264 120~373 24 0.125A 4000VAC

LD03-20B12WG 3 85~264 120~373 12 0.25A 4000VAC

LD03-20B05WG 3 85~264 120~373 5 0.6A 4000VAC

LD03-23BxxR2 4000VAC

LD03-23B24R2 3 85~305 100~430 24 125mA 4000VAC

LD03-23B15R2 3 85~305 100~430 15 200mA 4000VAC

LD03-23B12R2 3 85~305 100~430 12 250mA 4000VAC

LD03-23B09R2 3 85~305 100~430 9 333mA 4000VAC

LD03-23B05R2 3 85~305 100~430 5 600mA 4000VAC

LD03-23B03R2 3 85~305 100~430 3.3 900mA 4000VAC

LD03-23BxxWR2 4000VAC

LD03-23B24WR2 3 85~305 100~430 24 125mA 4000VAC

LD03-23B15WR2 3 85~305 100~430 15 200mA 4000VAC

LD03-23B12WR2 3 85~305 100~430 12 250mA 4000VAC

LD03-23B09WR2 3 85~305 100~430 9 333mA 4000VAC

LD03-23B05WR2 3 85~305 100~430 5 600mA 4000VAC

LD03-23B03WR2 3 85~305 100~430 3.3 900mA 4000VAC

LD03-23BxxR2P 3600VAC

LD03-23B06R2P 3 85~305 100~430 6 500mA 3600VAC

LD03-23B24R2P 3 85~305 100~430 24 125mA 3600VAC

LD03-23B15R2P 3 85~305 100~430 15 200mA 3600VAC

LD03-23B12R2P 3 85~305 100~430 12 250mA 3600VAC

LD03-23B09R2P 3 85~305 100~430 9 340mA 3600VAC

LD03-23B05R2P 3 85~305 100~430 5 600mA 3600VAC

LD03-23B03R2P 2 85~305 100~430 3.3 600mA 3600VAC

LD05-23BxxR2 4000VAC

LD05-23B24R2 5 85~305 100~430 24 208mA 4000VAC

LD05-23B15R2 5 85~305 100~430 15 333mA 4000VAC

LD05-23B12R2 5 85~305 100~430 12 416mA 4000VAC

LD05-23B09R2 5 85~305 100~430 9 555mA 4000VAC

LD05-23B05R2 5 85~305 100~430 5 1000mA 4000VAC

LD05-23B03R2 5 85~305 100~430 3.3 1515mA 4000VAC

LD05-23BxxWR2 4000VAC

LD05-23B24WR2 5 85~305 100~430 24 208mA 4000VAC

LD05-23B15WR2 5 85~305 100~430 15 333mA 4000VAC

LD05-23B12WR2 5 85~305 100~430 12 416mA 4000VAC

LD05-23B09WR2 5 85~305 100~430 9 555mA 4000VAC

LD05-23B05WR2 5 85~305 100~430 5 1000mA 4000VAC

LD05-23B03WR2 5 85~305 100~430 3.3 1515mA 4000VAC

LD05-23BxxR2-M 4000VAC

LD05-23B24R2-M 5.52 85~305 100~430 24 230mA 4000VAC

LD05-23B12R2-M 5.04 85~305 100~430 12 420mA 4000VAC

LD05-23B09R2-M 5.04 85~305 100~430 9 560mA 4000VAC

LD05-23B05R2-M 5 85~305 100~430 5 1000mA 4000VAC

LD05-23B15R2-M 4.95 85~305 100~430 15 330mA 4000VAC

LD05-23B03R2-M 4.95 85~305 100~430 3.3 1500mA 4000VAC

LD05-23BxxR2P 4200VAC

LD05-23B24R2P 5 85~305 100~430 24 208mA 4200VAC

LD05-23B15R2P 5 85~305 100~430 15 333mA 4200VAC

LD05-23B12R2P 5 85~305 100~430 12 416mA 4200VAC

LD05-23B09R2P 5 85~305 100~430 9 555mA 4200VAC

LD05-23B05R2P 5 85~305 100~430 5 1000mA 4200VAC

LD05-23B03R2P 3.3 85~305 100~430 3.3 1000mA 4200VAC

LD08-20BY4-US 4000VAC

LD08-20BY4-US 7.6 85~264 100~370 3.8 2000mA 4000VAC

LD10-26Bxx 4000VAC

LD10-26B24 10 90~528 100~745 24 450mA 4000VAC

LD10-26B15 10 90~528 100~745 15 700mA 4000VAC

LD10-26B12 10 90~528 100~745 12 900mA 4000VAC

LD10-26B09 10 90~528 100~745 9 1100mA 4000VAC

LD10-26B05 10 90~528 100~745 5 2000mA 4000VAC

LD10-23BxxR2 4000VAC

LD10-23B24R2 10 85~305 100~430 24 410mA 4000VAC

LD10-23B15R2 10 85~305 100~430 15 660mA 4000VAC

LD10-23B12R2 10 85~305 100~430 12 830mA 4000VAC

LD10-23B09R2 10 85~305 100~430 9 1100mA 4000VAC

LD10-23B05R2 10 85~305 100~430 5 2000mA 4000VAC

LD10-23B03R2 8.6 85~305 100~430 3.3 2600mA 4000VAC

LD10-23BxxR2-M 4000VAC

LD10-23B24R2-M 10 85~305 100~430 24 410mA 4000VAC

LD10-23B15R2-M 10 85~305 100~430 15 660mA 4000VAC

LD10-23B12R2-M 10 85~305 100~430 12 830mA 4000VAC

LD10-23B09R2-M 10 85~305 100~430 9 1100mA 4000VAC

LD10-23B05R2-M 10 85~305 100~430 5 2000mA 4000VAC

LD10-23B03R2-M 10 85~305 100~430 3.3 3000mA 4000VAC

LD10-2WBxx 4000VAC

LD10-2WB24 10.08 21.6~305 18~430 24 420mA 4000VAC

LD10-2WB15 10.05 21.6~305 18~430 15 670mA 4000VAC

LD10-2WB05 10 21.6~305 18~430 5 2000mA 4000VAC

LD10-2WB12 9.96 21.6~305 18~430 12 830mA 4000VAC

LD10-2WB09 9.9 21.6~305 18~430 9 1100mA 4000VAC

LD10-20BxxR2-AU 4000VAC

LD10-20B24R2-AU 10 85~264 100~370 24 410mA 4000VAC

LD10-20B12R2-AU 10 85~264 100~370 12 830mA 4000VAC

LD10-20B05R2-AU 7.5 85~264 100~370 5 1500mA 4000VAC

LD10-20B03R2-AU 6.6 85~264 100~370 3.3 2000mA 4000VAC

LD10-23BxxR2-RC 4200VAC

LD10-23B24R2-RC 10 85~264 100~370 24 410mA 4200VAC

LD10-23B15R2-RC 10 85~264 100~370 15 660mA 4200VAC

LD10-23B12R2-RC 10 85~264 100~370 12 830mA 4200VAC

LD10-23B05R2-RC 10 85~264 100~370 5 2000mA 4200VAC

LD10-23B03R2-RC 8.6 85~264 100~370 3.3 2600mA 4200VAC

LD10-23Bxx-DW 4000VAC

LD10-23B24-DW 10 85~305 100~430 24 420mA 4000VAC

LD10-23B15-DW 10 85~305 100~430 15 670mA 4000VAC

LD10-23B12-DW 10 85~305 100~430 12 830mA 4000VAC

LD10-23B09-DW 10 85~305 100~430 9 1100mA 4000VAC

LD10-23B05-DW 10 85~305 100~430 5 2000mA 4000VAC

LD15-23BxxR2 4000VAC

LD15-23B24R2 15 85~305 100~430 24 625mA 4000VAC

LD15-23B15R2 15 85~305 100~430 15 1000mA 4000VAC

LD15-23B12R2 15 85~305 100~430 12 1250mA 4000VAC

LD15-23B09R2 15 85~305 100~430 9 1670mA 4000VAC

LD15-23B05R2 15 85~305 100~430 5 3000mA 4000VAC

LD15-23B03R2 13.2 85~305 100~430 3.3 4000mA 4000VAC

LD15-23BxxR2-M 4000VAC

LD15-23B24R2-M 15 85~305 100~430 24 625mA 4000VAC

LD15-23B15R2-M 15 85~305 100~430 15 1000mA 4000VAC

LD15-23B12R2-M 15 85~305 100~430 12 1250mA 4000VAC

LD15-23B09R2-M 15 85~305 100~430 9 1670mA 4000VAC

LD15-23B05R2-M 15 85~305 100~430 5 3000mA 4000VAC

LD15-23B03R2-M 13.2 85~305 100~430 3.3 4000mA 4000VAC

LD15-25BxxR2 4000VAC

LD15-25B24R2 15 176~418 248~591 24 625mA 4000VAC

LD15-25B15R2 15 176~418 248~591 15 1000mA 4000VAC

LD15-25B12R2 15 176~418 248~591 12 1250mA 4000VAC

LD15-25B09R2 15 176~418 248~591 9 1670mA 4000VAC

LD15-25B05R2 15 176~418 248~591 5 3000mA 4000VAC

LD15-23BxxWR2 4200VAC

LD15-23B24WR2 15 85~305 100~430 24 625mA 4200VAC

LD15-23B15WR2 15 85~305 100~430 15 1000mA 4200VAC

LD15-23B12WR2 15 85~305 100~430 12 1250mA 4200VAC

LD15-23B09WR2 15 85~305 100~430 9 1670mA 4200VAC

LD15-23B05WR2 15 85~305 100~430 5 3000mA 4200VAC

LD15-23B03WR2 13.2 85~305 100~430 3.3 4000mA 4200VAC

LD20-26Bxx 4000VAC

LD20-26B24 20 90~528 100~745 24 833mA 4000VAC

LD20-26B15 20 90~528 100~745 15 1330mA 4000VAC

LD20-26B12 20 90~528 100~745 12 1660mA 4000VAC

LD20-26B09 20 90~528 100~745 9 2230mA 4000VAC

LD20-26B05 18 90~528 100~745 5 3600mA 4000VAC

LD20-26B03 11.88 90~528 100~745 3.3 3600mA 4000VAC

LD20-23BxxR2 4000VAC

LD20-23B24R2 20 85~305 100~430 24 830mA 4000VAC

LD20-23B15R2 20 85~305 100~430 15 1330mA 4000VAC

LD20-23B12R2 20 85~305 100~430 12 1670mA 4000VAC

LD20-23B09R2 20 85~305 100~430 9 2200mA 4000VAC

LD20-23B05R2 20 85~305 100~430 5 4000mA 4000VAC

LD20-23B03R2 14.85 85~305 100~430 3.3 4500mA 4000VAC

LD20-23BxxR2-RC 4200VAC

LD20-23B48R2-RC 20 85~305 100~430 48 410mA 4200VAC

LD20-23B24R2-RC 20 85~305 100~430 24 830mA 4200VAC

LD20-23B15R2-RC 20 85~305 100~430 15 1333mA 4200VAC

LD20-23B12R2-RC 20 85~305 100~430 12 1670mA 4200VAC

LD20-23B09R2-RC 20 85~305 100~430 9 2222mA 4200VAC

LD20-23B05R2-RC 20 85~305 100~430 5 4000mA 4200VAC

LD20-23B03R2-RC 13.2 85~305 100~430 3.3 4000mA 4200VAC

LD25-25BxxR2 4200VAC

LD25-25B48R2 26.4 176~418 248~591 48 550mA 4200VAC

LD25-25B24R2 26.4 176~418 248~591 24 1100mA 4200VAC

LD25-25B12R2 25.2 176~418 248~591 12 2100mA 4200VAC

LD25-25B09R2 25.2 176~418 248~591 9 2800mA 4200VAC

LD25-25B15R2 25.05 176~418 248~591 15 1670mA 4200VAC

LD25-25B05R2 25 176~418 248~591 5 5000mA 4200VAC

LD25-25B03R2 16.5 176~418 248~591 3 5000mA 4200VAC

LD30-23BxxR2 4200VAC

LD30-23B24R2 31.2 85~305 100~430 24 1300mA 4200VAC

LD30-23B09R2 30.6 85~305 100~430 9 3400mA 4200VAC

LD30-23B48R2 30.2 85~305 100~430 48 630mA 4200VAC

LD30-23B15R2 30 85~305 100~430 15 2000mA 4200VAC

LD30-23B12R2 30 85~305 100~430 12 2500mA 4200VAC

LD30-23B05R2 30 85~305 100~430 5 6000mA 4200VAC

LD30-23B03R2 19.8 85~305 100~430 3.3 6000mA 4200VAC

LD30-26BxxR2 4000VAC

LD30-26B09R2 30.06 176~528 248~746 9 3340mA 4000VAC

LD30-26B48R2 30 176~528 248~746 48 625mA 4000VAC

LD30-26B24R2 30 176~528 248~746 24 1250mA 4000VAC

LD30-26B15R2 30 176~528 248~746 15 2000mA 4000VAC

LD30-26B12R2 30 176~528 248~746 12 2500mA 4000VAC

LD30-26B05R2 30 176~528 248~746 5 6000mA 4000VAC

LD30-26B03R2 19.8 176~528 248~746 3.3 6000mA 4000VAC

LD40-23BxxR2 4200VAC

LD40-23B48R2 40 85~305 100~430 48 833mA 4200VAC

LD40-23B24R2 40 85~305 100~430 24 1670mA 4200VAC

LD40-23B15R2 40 85~305 100~430 15 2666mA 4200VAC

LD40-23B12R2 40 85~305 100~430 12 3330mA 4200VAC

LD40-23B05R2 35 85~305 100~430 5 7000mA 4200VAC

LDE45-20Bxx 4000VAC

LDE45-20B48 45 85~264 100~370 48 0.94A 4000VAC

LDE45-20B24 45 85~264 100~370 24 1.9A 4000VAC

LDE45-20B15 45 85~264 100~370 15 3A 4000VAC

LDE45-20B12 45 85~264 100~370 12 3.8A 4000VAC

LDE45-20B05 40 85~264 100~370 5 8A 4000VAC

LDE60-20Bxx 4000VAC

LDE60-20B48 60 85~264 100~370 48 1250mA 4000VAC

LDE60-20B24 60 85~264 100~370 24 2500mA 4000VAC

LDE60-20B15 60 85~264 100~370 15 4000mA 4000VAC

LDE60-20B12 60 85~264 100~370 12 5000mA 4000VAC

LDE60-20B05 50 85~264 100~370 5 10000mA 4000VAC

LD60-23BxxR2 4200VAC

LD60-23B55R2 60.5 85~305 100~430 55 1.09A 4200VAC

LD60-23B48R2 60 85~305 100~430 48 1.25A 4200VAC

LD60-23B24R2 60 85~305 100~430 24 2.5A 4200VAC

LD60-23B15R2 60 85~305 100~430 15 4A 4200VAC

LD60-23B12R2 60 85~305 100~430 12 5A 4200VAC

LD60-23B05R2 50 85~305 100~430 5 10A 4200VAC

LD90-23BxxR2 4200VAC

LD90-23B48R2 90 80~305 110~430 48 1875mA 4200VAC

LD90-23B24R2 90 80~305 110~430 24 3750mA 4200VAC

LD90-23B15R2 85.05 80~305 110~430 15 5670mA 4200VAC

LD90-23B12R2 80.4 80~305 110~430 12 6700mA 4200VAC
